DC Coreless driver Motor.Brushless speed driver Motor.Brushless driver Motor.24V
Product Description:
Assun driver integrated series BLDC motors are equipped with the speed driver inside of the motor for easier installation and more convenient use.Basic functions like speed control, rotation control and signal feedback can be achieved by the integrated driver.
Product introduction:
AM-BD3260AN-2408. 24V.
1.Diameter 32mm. Length 60mm.DC Brushless Driver Motor,8000-13000rpm.24V.
2. No load speed ±12%: 8448rpm. No load current Max150%: 110mA .
3.Torque constant 26.9mN.m/A. Speed constant 355rpm/V, Speed / torque gradient : 21.2rpm / mN.m
4.Weight :240.5g.Maximum power output 88.1W.
5. Maximum winding temperature: 85℃,Ambient temperatue range : -30 to 65℃.Motor thermal resistance : 7.8K/W.
6.DC Brushless driver motors can install the corresponding with encoder and planetarty gearbox.
Product Details:
| Motor Model | AM-BD3260AN-2408 | Unit |
| Nominal voltage | 24 | V |
| No load speed ±12% | 8448 | rpm |
| No load current Max150% | 110 | mA |
| Max cont.torque | 32.0 | mN.m |
| Rated Speed | 7769 | rpm |
| Rated Current | 1300 | mA |
| Rated Power | 26.1 | W |
| Starting current | 14907 | mA |
| Stall Torque | 398 | mN.m |
| Maximum power output | 88.1 | W |
| Maximum Efficiency | 84.2 | % |
| Operating Range | 10~28 | V |
| Type of Current | Controlled |
| Mechanical time constant | 3.01 | ms |
| Moment of inertia | 13.35 | gcm² |
| Torque constant | 26.9 | mN.m / A |
| Speed constant | 355 | rpm / V |
| Speed / torque gradient | 21.2 | rpm / mN.m |
| Weight | 240.5 | g |
Recommended Gearbox:
Planetary gearbox: AM-32GP. AM-36GP.
Recommended Encoder :
Encoder S: AM-EN2211S**
2~3 Channels
Encoder T: AM-EN2412T**
2~3 Channels
Appliation:
Assun Motor application of positive element brushless precision servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
Service idea :
We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
Product Tags:
|
|

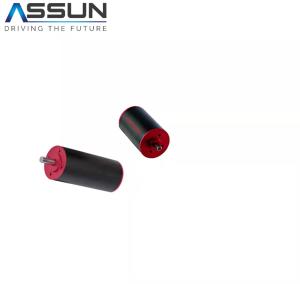

Coreless Brushless Driver Motor , 110mA 8000 Rpm Dc Motor With Speed Driver Images
|
